Description

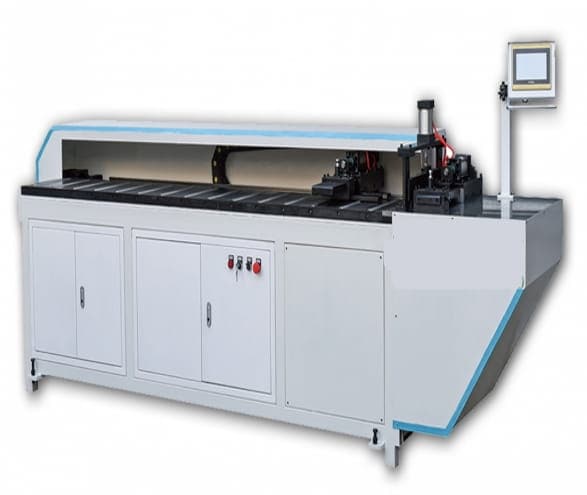

CNC Busbar Segment Sawing Machine Specifications
| MODEL | UNIT | AKS-SM-8 |
|---|---|---|
| SAW BLADE ROTARY | RPM | 2800 |
| SAW BLADE DIAMETER | MM | 27 |
| X AXLE MAX POSITIONING SPEED | M/MIN. | 50 |
| X AXLE STROKE | MM | 2000 |
| PLATE MATERIAL MIN.LENGTH | MM | 30 |
| PLATE MATERIAL SIZE | MM | 30*3-200*15 |
| AIR PRESSURE | MPA | 0.2 TO 1.0 |
| POWER | KW | 5.5 |
| DIMENSION | CM | 330*75*130 |
| WEIGHT | TON | 1.3 |
CNC Busbar Segment Sawing Machine Applications and Features
Application:CNC bus bar sawing machine is a new generation of processing Equipment whose main purpose is to cut off bus bars of various specifications
Processing, the machine uses high-speed disc saw blades, fast cutting speed.The shear section has high verticality and no sag, which is the ideal processing equipment for segment processing of bus bar.
Features:
1.Uses high-speed disc saw blades, fast cutting speed.
2.It can achieve one-time clamping for the long copper bar.It does not need manual intervention during processing.It can automatically and repeatedly switch clamps with high degree of automation.
3.The copper bar clamping adopts pneumatic clamping method, which has fast clamping speed and convenient maintenance.
4.The device adopts human-machine interface (touch screen) dialogue mode. During work, simply setting related parameters can easily and quickly cut off the busbar. It has the advantages of simple operation and low requirements for operators.
5.This machine adopts the transmission method of high precision ball screw and high precision linear guide, which has the advantages of high precision, high efficiency, low energy consumption and high stability.

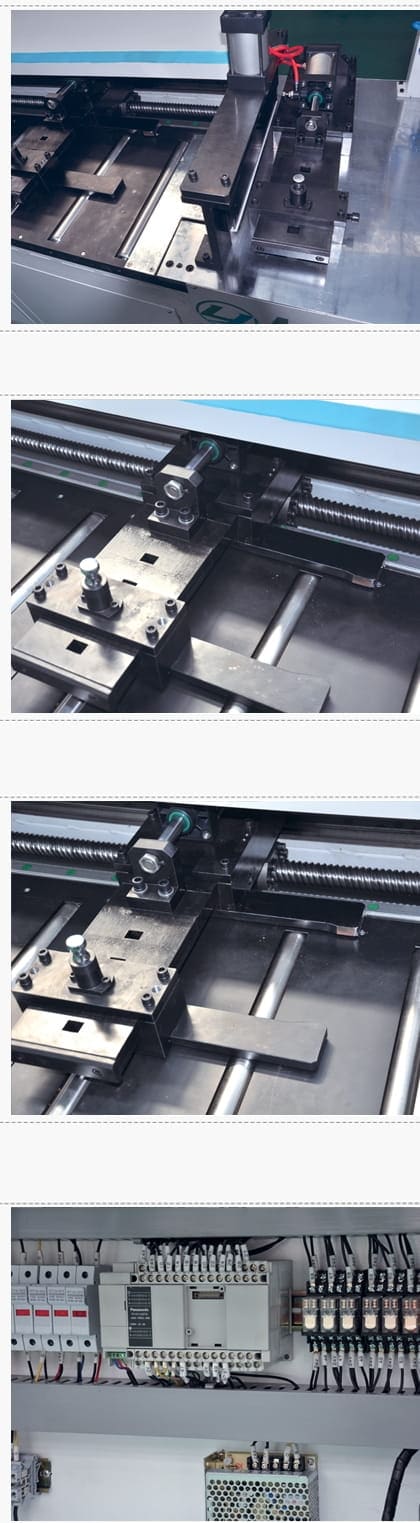

CNC Busbar Segment Sawing Machine Structure and Components
