Copper rod shape forming machine

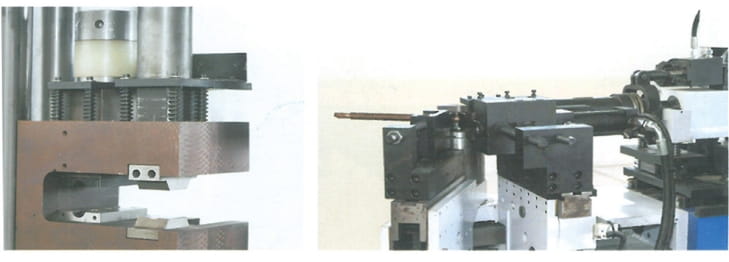

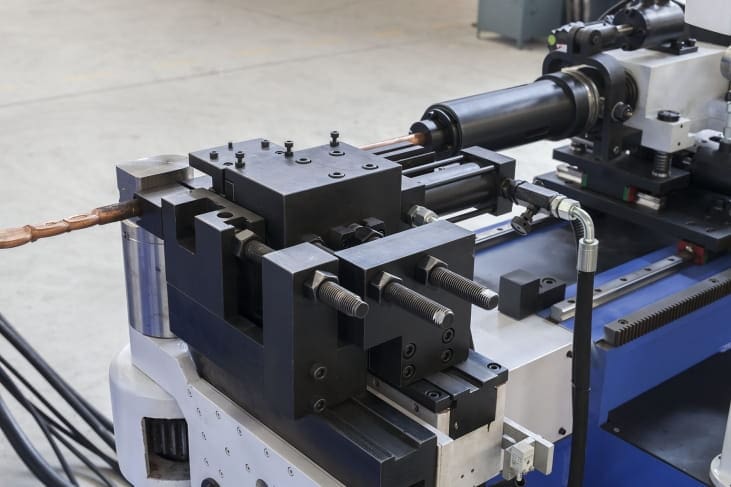

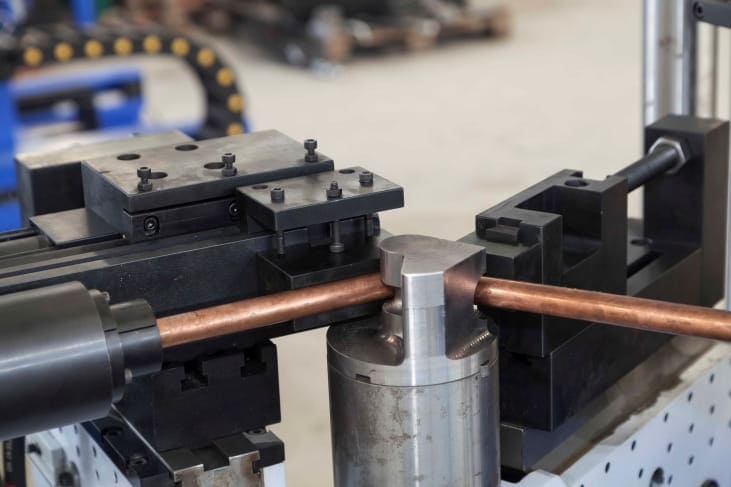

The equipment has the functions of three-dimensional multi-angle CNC bending of copper rods, automatic positioning and numerical control flattening, automatic cutting and punching; manual auxiliary feeding, automatic feeding, and continuous (or sub-control) automatic processing of the workpiece (when the material length meets the unfolded length of the workpiece ). The human-machine interface of the device is easy to operate, and the dimension can be inputted according to the workpiece drawing, and it has the function of storage and retrieval.

Description

Copper rod shape forming machine Specifications

MODEL	UNIT	AKS-CB-260
FLATTEN,CUTING,PUNCHING FORCE	KN	1000
BRASS ROD FEEDING MAX. SINGLE STROKE	MM	1000
SPACE ROTARY ANGLE ACCURACY	DEGREE	±0.5
BENDING ACCURACY	DEGREE	±0.5
HYDRAULIC BENDING FORCE POWER	KN	260
FEEDING LENGTH ACCURACY	MM	0.5
FLATTEN LENGTH ACCURACY	MM	0.5
BENDING LENGTH ACCURACY	MM	0.5
TOTAL POWER	KW	13

Copper rod shape forming machine Applications and Features

Application: The equipment has the functions of three-dimensional multi-angle CNC bending of copper rods, automatic positioning and numerical control flattening, automatic cutting and holes punching;.

Features:

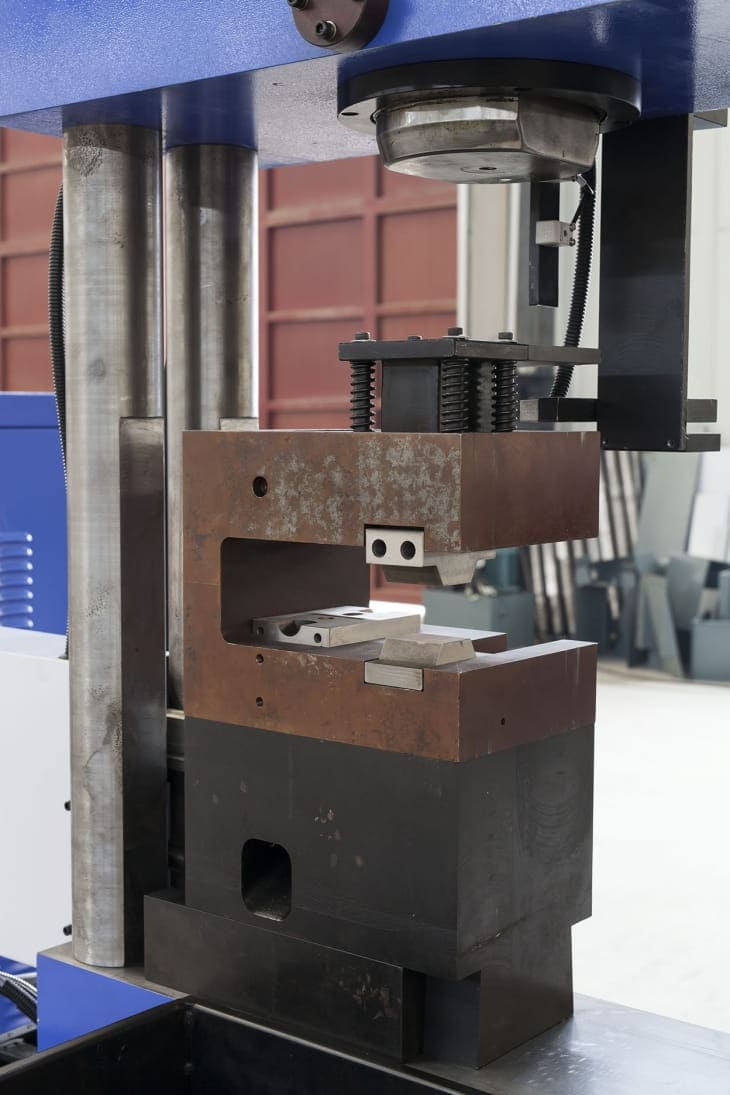

1.With functions of metal rod automatic positioning flatten,cutting ,bending and hole punching.

2..Touch screen: human-machine interface, simple operation, real-time reflection of program running status, with display device operation alarm information function, can easily set mold parameters and operate equipment operation.
