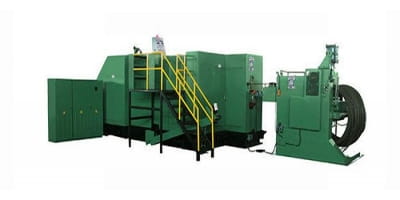

Four Die Four Blow Bolt Former

Description

Main Specifications of Four Die Four Blow Bolt Former

Four Stations Multi Stage High Speed Bolt Making Machine
Model	Unit	44S	64S	84S	104S	104L	134L
Forging Station	NO.	4	4	4	4	4	4
Forging force	Tons	16	35	60	80	80	120
Max.cut-off dia.	mm	Φ4	φ8	φ10	φ12	φ12	φ15
Max.cut-off length	mm	66	80	115	135	185	190
Output rate	pcs/min	350	140-210	120-180	90-140	80-130	75-110
P. K. O. stroke	mm	12	12	18	20	30	40
K.O stroke	mm	52	70	92	118	160	175
Main ram stroke	mm	95	110	160	190	262	270
Main motor power	Kw	11	15	22	30	30	37
Overall dims. Of cut off die	mm	Φ20	φ30*45L	φ50*50L	φ45*59L	φ45*59L	φ63*69L
Overall dims. Of punch die	mm	Φ35*75L	φ40*90L	φ45*125L	φ53*115L	φ53*115L	φ60*130L
Overall dims. Of main die	mm	Φ40*85L	φ50*85L	φ60*130L	φ75*135L	φ75*185L	φ86*190L
Die pitch	mm	50	60	70	90	94	110
Approx. weight	T	4.3	8	14	18	21	28
Applicable bolt size	mm	1-4	3-6	5-8	6-10	6-10	8-12.7
Shank length of blank	mm	6-50	10-65	15-90	15-110	20-152	20-160

Model	Unit	134LL	134LLL	164S	164LL	204L	204LL
Forging Station	NO.	4	4	4	4	4	4
Forging force	Tons	120	120	210	210	350	350
Max.cut-off dia.	mm	φ15	φ15	φ18	φ18	Φ23	Φ23
Max.cut-off length	mm	265	285	195	350	240	360
Output rate	pcs/min	50-80	50-80	70-100	70-100	55-80	60
P. K. O. stroke	mm	40	40	40	45	46	45
K.O stroke	mm	225	280	178	330	220	330
Main ram stroke	mm	380	380	260		346
Main motor power	Kw	37	37	55	55	75	75
Overall dims. Of cut off die	mm	φ63*69L	φ63*69L	Φ60*90L	Φ60	Φ75*120L	Φ75
Overall dims. Of punch die	mm	φ60*229L	φ60*229L	Φ75*185L	Φ75*185L	Φ90*215L	Φ90*190L
Overall dims. Of main die	mm	φ86*305L	φ86*305L	Φ100*190L	Φ100*345L	Φ125*240L	Φ125*345L
Die pitch	mm	110	110	120	126	140	138
Approx. weight	T	33	38	45	66	62	75
Applicable bolt size	mm	8-12.7	8-12.7	10-16	10-16	12-20	12-20
Shank length of blank	mm	40-220	75-262	20-160	100-300	25-200	100-300

Model	Unit	254S	254L	304L	364L
Forging Station	NO.	4	4	4	4
Forging force	Tons	430	430	550	750
Max.cut-off dia.	mm	Φ28	Φ29	Φ38	Φ42
Max.cut-off length	mm	253	320	450	450
Output rate	pcs/min	40-70	60	45	45
P. K. O. stroke	mm	40	60	80	80
K.O stroke	mm	205	290	400	400
Main ram stroke	mm	330
Main motor power	Kw	90	90	132	200
Overall dims. Of cut off die	mm	Φ80*130L	Φ90	Φ115	Φ145
Overall dims. Of punch die	mm	Φ120*270L	Φ105*232L	Φ135*240L	Φ155*265L
Overall dims. Of main die	mm	Φ140*250L	Φ160*294L	Φ185*420L	Φ195*420L
Die pitch	mm	160	174	200	220
Approx. weight	T	105	105	186	258
Applicable bolt size	mm	14-25.4	16-25.4	20-33	30-38
Shank length of blank	mm	35-200	35-250	80-350	80-350

1.We reserves the right to modify the above parameters, and may not be notified if there is any modification;

2.The most suitable production speed of the product depends on the shape, size and material of the product;

3.The maximum material shear diameter and the suitable product diameter listed in the table are calculated as medium carbon alloy steel, equivalent to 10.9 high strength screws.

Application Scope of Four Die Four Blow Bolt Former

Four Die Four Blow Bolt Former is one kind of specialized machine with high efficiency and automation among forging machinery. Four Die Four Blow Bolt Former are used for producing different kinds of bolts, screws, rivets,special parts and nuts in the field of fastener industry. Because of the advantage of the cold forging equipment itself and the superiority of cold forging technique, the Three Die Three Blow Bolt Maker also are widely used in different national economic fields for producing fasteners and non-standard parts for industry of aviation steamer, machinery, rail traffic, vehicle, motorcycle, bicycle, sewing machine, construction, furniture, light industry and daily necessities, etc.

Items can be produced by the Four Die Four Blow Bolt Former

Flange Bolts, Socket bolts,Hex Bolts, Fastener and Bolts, Hex Cap Screws, Spring Center bolts, Hex Socket Cap Screws, Carriage bolts, solid rivets, square head set screws, truss head track bolts, U Bolts, Fin Neck Bolts, shoulder bolts, coil thread bolts, Structure Liner Bolts, extra long Bolts, Hub Bolts fetter drive screws, wheel bolts, t-head bolts, Flange Bolts, eye bolts, shackle bolts, track bolts, wheel bolts, hex cap screws,auto fasteners,etc.

Salient Features of Four Die Four Blow Bolt Former

1. The air clutch brake system has been designed to actuate with low current and as “inching”, “single stroke” and “continuous running”. Except “inching”, the machine will always stop at the backward position of the main slider while operating in largest space.

2. Two sorts of transfers system for customer to choose: swing type (general equipped) and universal type (optional), equipped with pneumatic gripper, it can simplify the demand of operation, and is more stable when the machine runs at high speed.

3. Main motor is equipped with speed-adjust transducer, PLC control system, computer automatic man-machine interface system(Optional), these equipment make lots of convenience for customer to adjust the dimension of the non-standard products.

4. Feeding wheel and claw system are both drived by cylinder, the claw can stretch automatically when it goes back in order to reduce abrasion and noise. Feeding material and stop feeding material are controlled by two claws, the feeding material system is equipped with device for avoiding material draw back.

5. Perfect inspection system: short material inspecting and eliminating, inspection of the low location of oil pressure and air pressure, transfer system floating inspection system, overload, and lightload stop system to protect the lathe and dies and prolong the service life of them.

6. When the customer prepare to adjust the side cutting screw, they only need to adjust side cam’s station position, then they can achieve side cutting purpose. When the workpieces need not side cutting, customer can reset it to achieve the change from side cutting to former station.

7. High strengthened-material lathe bed, lengthened main and subsidiary slider structure and “pedrailtype” slider which is adopted domestically for the first time realize “zero space” assembling which assures the precision of the main slider movement and lengthens their service life of dies.

8. The main parts of all type machines have adopted strict casting procedure and annealing disposal to assure its steel hardness and precision.

9. Circle cutting die station assures the sheared material shouter than billet diameter which also can achieve accurate right angle cutting.

10. Auto sizing material stopper can adjust the precision of material size in the state of machine running.

11. P.K.O synchronized knock out system makes the choice of molding technics flexible.

12. Transfer finger moving and cutting cams are calculated via professional computer software to make machine stable in state of high speed forging.

13.There is imported converter available in electrical system, so it is easy to run the former with stepless variable drive PLC also is used for automatically inspecting the working mode of the former with the functions of fault alarm and fault display.

14.Touch screen and man-machine dialogue numerical control system are optional for meeting customer requirement, they are used for setting the length of thread pipe of rear knock out, the length of barrier and the feeding length, it is convenient for quick die change. This system has a memory capacity of 99 mnemonic modules for meeting the requirement of quick die change.

Main Structure And Parts Picture Introduction of Four Die Four Blow Bolt Former

Bolt maker body without enclosure	High precision main slider​
Spring clamps system	Transfer fingers system
PKO system	Wire material cutting system
Clutch system with brake device	Gears transmission system
Hydraulic and pnumatic control system	Material discharge mechanism with convex plate quick replace function
Wire material feeding system	Spiral bevel tranmission driving system



Standard accessories of Four Die Four Blow Bolt Former
1. One set of trial tools
2. One set of standard hand tools.
3. One set of standard spare parts.
4. One set of Clutch
5. One set of control Panel
6. One set of AC motor
7. transducer speed adjusting system.
8. Full Cover
9. Device of protect revert feed
10. One set of operator stand (The Buyer jointing in the Buyer plant)
11. Inside Lamp
12. One set of Safety Device
1. Pneumatic Sensor
2. Oil less Sensor
3. K.O. & P.K.O. Safety pin breakage detector
4. End of material detector
5. Motor Over load detector (including lub., coolant and fan motors)
6. Short Feed detector
7. Air pressure shortage detector
8. Lub. Oil shortage detector
9. Two-hand control unit for jogging
13. Two sets of electrical, operation & maintains manual in English.
14. The following consumables spare of machine drawing will be provided by Seller.
a)Die Locking Screw
b)Punch Locking Screw
c)P.K.O. Lever
d)Punch Bolster for all stations
e)Trimming Cam Drawing
f)K.O. Rod Drawing
g)All safety bolts drawings
h)Ratchet wheel drawing
i)Transfer arm drawing
j)Drawing of straightening rolls
k)Complete set of Electrical drawings
l)Die & Punch Blocks drawings
