Description
Application Scope

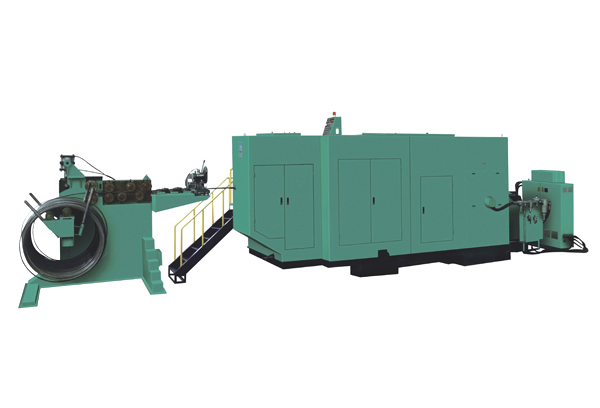

Automatic Four station Cold Bolt Making machine is one kind of specialized machine with high efficiency and automation among forging machinery. Cold forging technique and automatic cold forging machines are used for producing different kinds of bolts, screws, rivets,special parts and nuts in the field of fastener industry. Because of the advantage of the cold forging equipment itself and the superiority of cold forging technique, the cold forging machine also are widely used in different national economic fields for producing fasteners and non-standard parts for industry of aviation steamer, machinery, rail traffic, vehicle, motorcycle, bicycle, sewing machine, construction, furniture, light industry and daily necessities, etc.
Items can be produced by the 254S(36B4S) bolt making machine
Flange Bolts, Socket bolts,Hex Bolts, Fastener and Bolts, Hex Cap Screws, Spring Center bolts, Hex Socket Cap Screws, Carriage bolts, solid rivets, square head set screws, truss head track bolts, U Bolts, Fin Neck Bolts, shoulder bolts, coil thread bolts, Structure Liner Bolts, extra long Bolts, Hub Bolts fetter drive screws, wheel bolts, t-head bolts, Flange Bolts, eye bolts, shackle bolts, track bolts, wheel bolts, hex cap screws,auto fasteners,etc.
Salient Features:
1. The air clutch brake system has been designed to actuate with low current and as “inching”, “single stroke” and “continuous running”. Except “inching”, the machine will always stop at the backward position of the main slider while operating in largest space.
2. Two sorts of transfers system for customer to choose: swing type (general equipped) and universal type (optional), equipped with pneumatic gripper, it can simplify the demand of operation, and is more stable when the machine runs at high speed.
3. Main motor is equipped with speed-adjust transducer, PLC control system, computer automatic man-machine interface system(Optional), these equipment make lots of convenience for customer to adjust the dimension of the non-standard products.
4. Feeding wheel and claw system are both driven by cylinder, the claw can stretch automatically when it goes back in order to reduce abrasion and noise. Feeding material and stop feeding material are controlled by two claws, the feeding material system is equipped with device for avoiding material draw back.
5. Perfect inspection system: short material inspecting and eliminating, inspection of the low location of oil pressure and air pressure, transfer system floating inspection system, overload, and light load stop system to protect the lathe and dies and prolong the service life of them.
6. When the customer prepare to adjust the side cutting screw, they only need to adjust side cam’s station position, then they can achieve side cutting purpose. When the workpieces need not side cutting, customer can reset it to achieve the change from side cutting to former station.
7. High strengthened-material lathe bed, lengthened main and subsidiary slider structure and “pedrailtype” slider which is adopted domestically for the first time realize “zero space” assembling which assures the precision of the main slider movement and lengthens their service life of dies.
8. The main parts of all type machines have adopted strict casting procedure and annealing disposal to assure its steel hardness and precision.
9. Circle cutting die station assures the sheared material shouter than billet diameter which also can achieve accurate right angle cutting.
10. Auto sizing material stopper can adjust the precision of material size in the state of machine running.
11. P.K.O synchronized knock out system makes the choice of molding technics flexible.
12. Transfer finger moving and cutting cams are calculated via professional computer software to make machine stable in state of high speed forging.
13.There is imported converter available in electrical system, so it is easy to run the former withstepless variable drive PLC also is used for automatically inspecting the working mode of the former with the functions of fault alarm and fault display.
14.Touch screen and man-machine dialogue numerical control system are optional for meeting customer’s requirement, they are used for setting the length of thread pipe of rear knock out, the length of barrier and the feeding length, it is convenient for quick die change. This system has a memory capacity of 99 mnemonic modules for meeting the requirement of quick die change.
Main Technical Parameters
| Model |
Unit |
254S(36B4S) |
| Forging Station |
NO. |
4 |
| Forging force |
ton |
430 |
| Max.cut-off dia. |
mm |
φ28 |
| Max.cut-off length |
mm |
253 |
| Output rate |
pcs/min |
40-70 |
| P. K. O. stroke |
mm |
40 |
| K.O stroke |
mm |
205 |
| Main ram stroke |
mm |
330 |
| Main motor power |
Kw |
90 |
| Overall dims. Of cut off die |
mm |
φ80*130L |
| Overall dims. Of punch die |
mm |
φ120*270L |
| Overall dims. Of main die |
mm |
φ140*250L |
| Die pitch |
mm |
160 |
| Approx. weight |
T |
105 |
| Applicable bolt size |
mm |
M14,M16,M18,M20,M22,M24 |
| Shank length of blank |
mm |
35-200 |
Annexure I Accessories for 254S(36B4S) bolt making machine
1. One set of trial tools
2. One set of standard hand tools.
3. One set of standard spare parts.
4. One set of Clutch
5. One set of control Panel
6. One set of AC motor
7. transducer speed adjusting system.
8. Full Cover
9. Device of protect revert feed
10. One set of operator stand (The Buyer jointing in the Buyer’s plant)
11. Inside Lamp
12. One set of Safety Device
1. Pneumatic Sensor
2. Oil less Sensor
3. K.O. & P.K.O. Safety pin breakage detector
4. End of material detector
5. Motor Over load detector (including lub., coolant and fan motors)
6. Short Feed detector
7. Air pressure shortage detector
8. Lub. Oil shortage detector
9. Two-hand control unit for jogging
13. Two sets of electrical, operation & maintains manual in English.
14. The following consumables spare of machine drawing will be provided by Seller.
a)Die Locking Screw
b)Punch Locking Screw
c)P.K.O. Lever
d)Punch Bolster for all stations
e)Trimming Cam Drawing
f)K.O. Rod Drawing
g)All safety bolts drawings
h)Ratchet wheel drawing
i)Transfer arm drawing
j)Drawing of straightening rolls
k)Complete set of Electrical drawings
l)Die & Punch Blocks drawings
Annexure II Main features for 254S(36B4S) bolt making machine
1. Machine body material: HT300 high quality cast iron by Taiwan investment factory.
2. Main slide material: QT600 ductile iron by Taiwan investment factory.
3. Main crane shaft material 42CrMo forging alloy steel with Nitriding treatment.
4. Main cams, rollers and slide guider plate are made of material SKD-II, with whole body vacuum hardening.
5. Gripping plate is made of aero hard aluminum with hard anodizing treatment.
6. Main die case is made of 42CrMo forging alloy steel.
7. Copper sleeves use phosphor bronze PBC-2
8. The bottom of front and back wing of main slider adopt super wearing inserted copper plate (PBC-2 material) with self lubrication.
9.Air Clutch – Yung Shing, Taiwan
10.PLC – Mitsubishi, Japan
11.All Bearings – NSK & IKO, Japan
12.Inverter – Schneider, France
13.Lubricating Pump – Zhiguan, Taiwan
