Description
Application Scope
Material suit to be blasted polishing include carbon structural steel,alloy
structural steel,carbon tool steel,spring steel,bearing steel,high speed mold steel,alloy tool steel,stainless steel(austenitic,ferritic,martensitic)
Main Specifications:

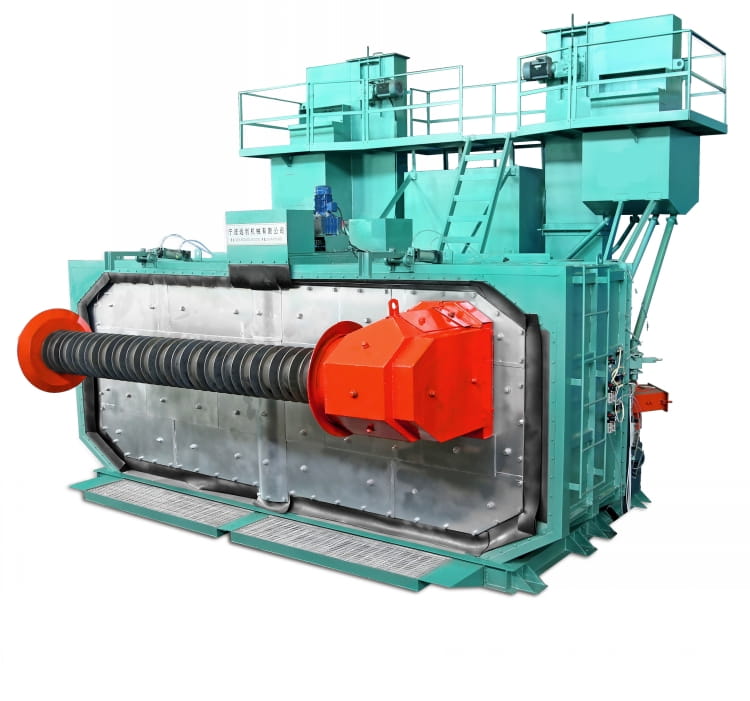

Model 3800 Automatic Steel Wire Polishing and Derust Line
Equipment
1.Six sets wire polishing machine,Motor power 22KW per piece.
2.Steel wire coil material size:
A. WIRE SIZE:34mm
B. Coil min diameter:800mm
C. Coil max diameter (max):1500mm
D.Max.Load
| dia. | 6.5-8mm | 10-12 mm | 14 mm | 16 mm | 20 mm | 30 mm | 34 mm |
| weight | Max Kg
1000 |
Max Kg
2000 |
Max Kg. 2000 | Max Kg. 2200 | Max Kg. 2200 | Max Kg. 2500 | Max Kg. 2500 |
Automatic Steel Wire Polishing and De-rust Line

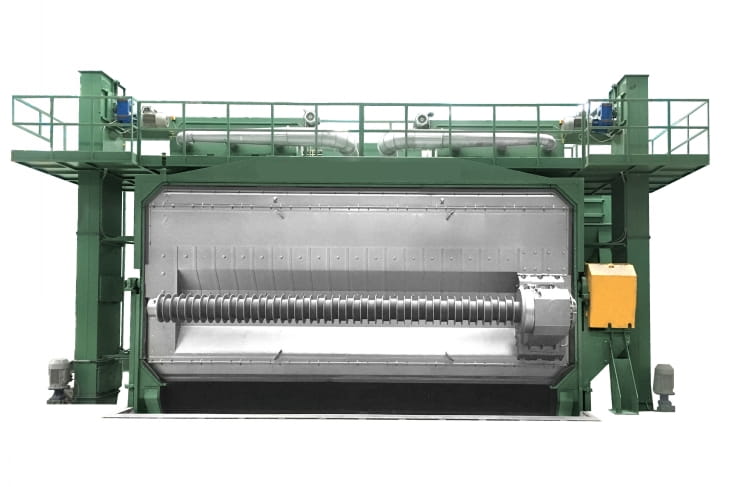

Model 5500 Automatic Steel Wire Polishing and De-rust Line
Equipment
1.Eight sets wire polishing machine,Motor power 22KW per piece.
2.Steel wire coil material size:
- WIRE SIZE:34mm
- Coil min diameter:800mm
- Coil max diameter (max):1500mm
D.Max.Load
| dia | 6.5-8mm | 10-12 mm | 14 mm | 16 mm | 20 mm | 30 mm | 34 mm |
| weight | Max Kg
2000 |
Max Kg
2000 |
Max Kg. 2000 | Max Kg. 2200 | Max Kg. 2200 | Max Kg. 2500 | Max Kg. 2500 |
Model 5500 Automatic Steel Wire Polishing and De-rust Line
