Description
Solution and production process:
1.Machine to make belt wire from round wire
2.Rolling-up machine(make coil from the processed wire )
3.Wire collection machine(collect wire)
4.Cutting machine(coil is to be cut )

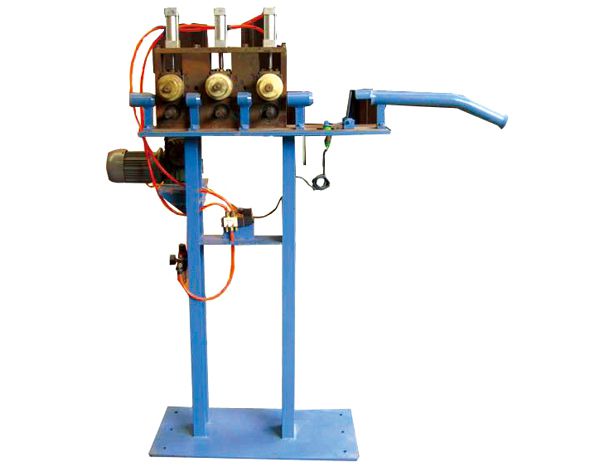

Machine to make belt wire from round wire

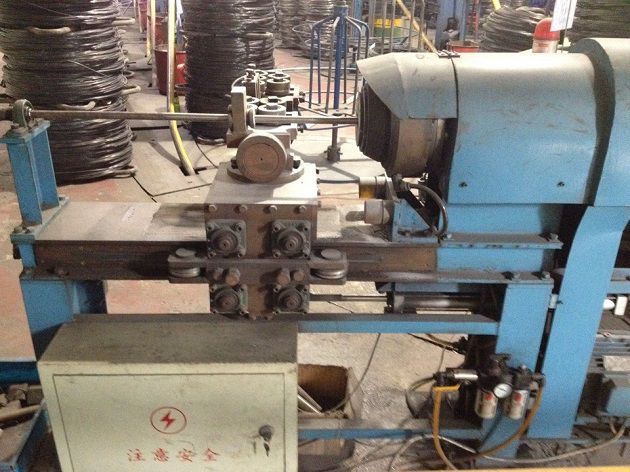

Spring Washr Rolling up Machine

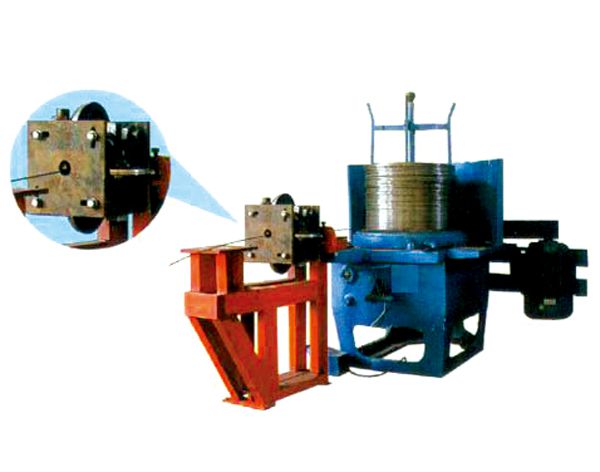

Coil Collection Machine

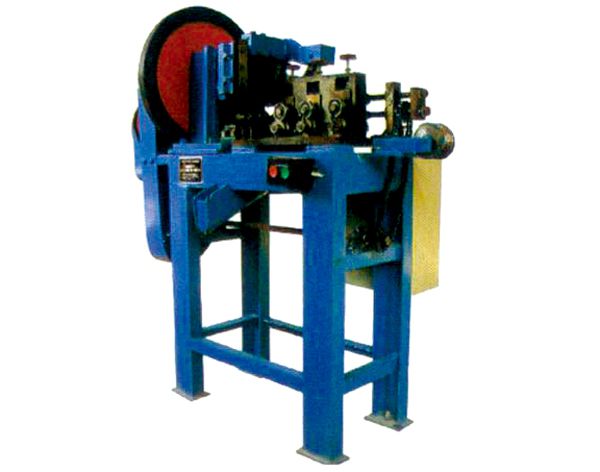

Spring Washer Coil Cutting Machine
Main Technical Parameters
| Item | Specification | Speed rpm | Dimension(L*W*H) mm | Weight/kg |
| Belt Wire Drawing Machine | Reel dia.:550 | |||
| Reel dia.:350 | ||||
| Coil machine | 3-5mm(inner dia of final product) | 1080 | 1380*600*950 | 400 |
| 6mm(inner dia of final product) | 1080 | 1600*650*950 | 450 | |
| 8-10mm(inner dia of final product) | 720 | 1800*750*1350 | 750 | |
| 12-16mm(inner dia of final product) | 518 | 1800*750*1350 | 1000 | |
| 18-22mm(inner dia of final product) | 392 | 2000*1450*900 | 1200 | |
| 24-30mm(inner dia of final product) | 262 | 2200*1000*1500 | 1600 | |
| Above 33mm(inner dia of final product) | 150 | 2600*1100*1780 | 2000 | |
| Coil collection machine | Below 12mm(inner dia of final product) | |||
| 12-22mm(inner dia of final product) | ||||
| Cutting machine | 3-5mm(inner dia of final product) | 530 | 850*700*1250 | 300 |
| 6-8mm(inner dia of final product) | 368 | 1200*750*1350 | 450 | |
| 10-12mm(inner dia of final product) | 296 | 1450*850*1500 | 600 | |
| 14-16mm(inner dia of final product) | 213 | 1550*950*1580 | 1000 | |
| 18-20mm(inner dia of final product) | 150 | 1650*1000*1600 | 1300 | |
| 22-30mm(inner dia of final product) | 120 | 1850*1200*1600 | 1500 | |
| above33mm(inner dia of final product) | 70 | 2000*1500*2800 | 3000 | |
| Mould(round wire to belt wire) material Cr12Movz | 150mm | |||
| 200mm | ||||
| 150mm mould sheet | ||||
| 200mm mould sheet |
