Description
Main Specifications:
| Model | Unit | APM16300 |
| Stations | Pcs | One die two blows |
| Appro.Dimension | Cm | 700*280*250 |
| Main Slider Stroke | Mm | 380 |
| Suitable Product Size | M10-M16 | |
| Max. Product Length | Mm | 300 |
| Min. Product Length | Mm | 75 |
| Max. Production Speed | Pcs/Min. | 35 |
| Main Motor Power | Kw | 22 |
| Appro. Machine Weight | Ton | 18 |
Application Scope
Extra Long Screws Making Machine is one kind of specialized machine with high efficiency and automation among forging machinery. High Speed Screws Cold Forging Machine are used for producing different kinds of self tapping screws,rivets,hinge pin and special parts in the field of fastener industry. Because of the advantage of the cold forging equipment itself and the superiority of cold forging technique, the Extra Long Screws Making Machine also are widely used in different national economic fields for producing fasteners and non-standard parts for industry of building,aviation steamer, machinery, rail traffic, vehicle, motorcycle, bicycle, sewing machine, construction, furniture, light industry and daily necessities, etc.

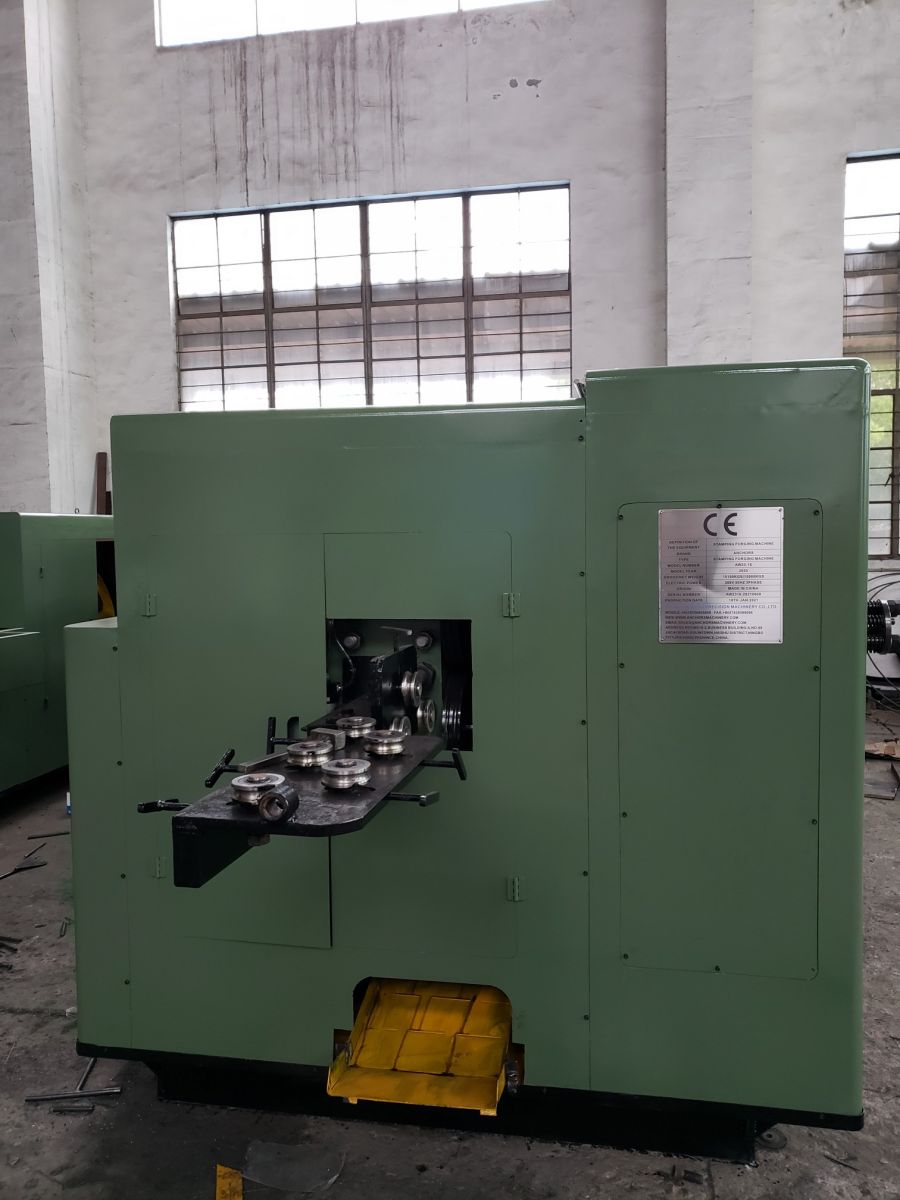

Items can be produced by the M16*300MM Extra Long Screws Making Machine
self tapping screws,rivets,hinge pin and special parts,chipboard screw,particle board screw,double ended screw,dowel screw,hanger bolt,drywall screw,lag screw,mirror screw,sheet metal screw,Twinfast screw,wood screw,Security head screw,self-drilling screw,self-tapping machine screw,Teks screw,auto fasteners,etc.
Salient Features of M16*300MM Extra Long Screws Making Machine
1. The latest design, beautiful appearance, high speed, high efficiency, low energy consumption, easy to operate.
2.Important components, such as bed and sliders are made of high strength and quality castings, and high stability.
3.Guide plate and crankshaft uniform imported high wear resistance alloy steel, and after special treatment, super wearable.
4.The main slide rails design adopts before and after (double track) designed to ensure high-speed impact, stable and reliable.
5.The new type cam and lifter system to ensure the accuracy of first and second punching stability.
6.Some parts adopts machining center to ensure the accuracy and interchangeability of parts.
7.Oil tank multi-stages filtration,forced circulation lubrication system to ensure that the oil filtered and clean to the lubrication points which can extend equipment life.
8.Suitable for making of small screws, precision screws, extra long screws.
Main Standard and optional items for cold heading machine
  |
  |
| Auto checker for cold heading machine | PKO for cold heading machine |
  |
  |
| Screw conveyor for cold heading machine | Coil stand for cold heading machine |
Standard accessories of M16*300MM Extra Long Screws Making Machine
1. One set of trial tools
2. One set of standard hand tools.
3. One set of standard spare parts.
4. One set of control Panel
5. One set of AC motor
6. Inside Lamp
