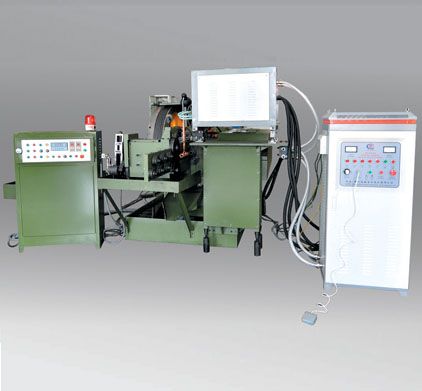

Description

Main features:

1.Better blank ball shape,saving material,saving working procedure time,lower cost.
2.There is a universal head to connect crank and main slider, which pledged the equability and agility of the movement. Easy to adjust the gap caused by wear, improve the precision of blank ball.
3.Adopt diamond cutter bar, both sides have lean-iron to adjust gap, guarantee makes high quality blanking pieces.
4.The feed part adopt feed wheel, Feeding material stable and reliable.
5.Scissors slide plate use mosaic block type, easy to repair.
6.Cutting time adjusting disc use multi-tooth table, avoid blade plate broken.”

The main technical parameters:

Processing range (mm): Φ17-Φ23
Production capacity (pcs / min): 75
Main motor power (kw): 18
Induction heating power (kw) :120
Power (v) :380 or customized
Dimensions (mm) :4300 * 2100 * 1800
Weight (kg) :7000
