Description
Main Specifications:
| Screw Type | #8 ~ #14 | |
| Screw Length | 1/2″ (12mm) ~ 5″ (125mm) | |
| Washer Size | PVC10, PVC11 | EPDM,PVC10, PVC11, D12, D14, D16, D19, (Optional:D22, D25) |
| Voltage | 220V / 380V OR CUSTOMIZED | |
| Control | DC24V PLC Programable Controller & Inverter | |
| Motor | 3PH 1/4HP | |
| Screw Vibrator | 750 | |
| Washer Vibrator | 400 | 500 |
| Speed | 80~600 pcs/min | |
| Machine Weight | approx. 1080 KG | approx. 1140 KG |
| Add-on Equipment | Screw & Washer Supply Stand | |
Application Scope
Screw and washer automatic assembly machine for thread rolling machine is to assemble many kinds and sizes of screws and wahsers then threaded by thread rolling machine to fix the washer on the screws.
Salient Features of Screw and washer automatic assembly machine for thread rolling machine
1. The automatic running with plc control.
2. Wire drawing speed is fast and drawed flatten wire surface bright and top appearance.
3. Easy to operate and less power consumption.
Main Structure and Designs

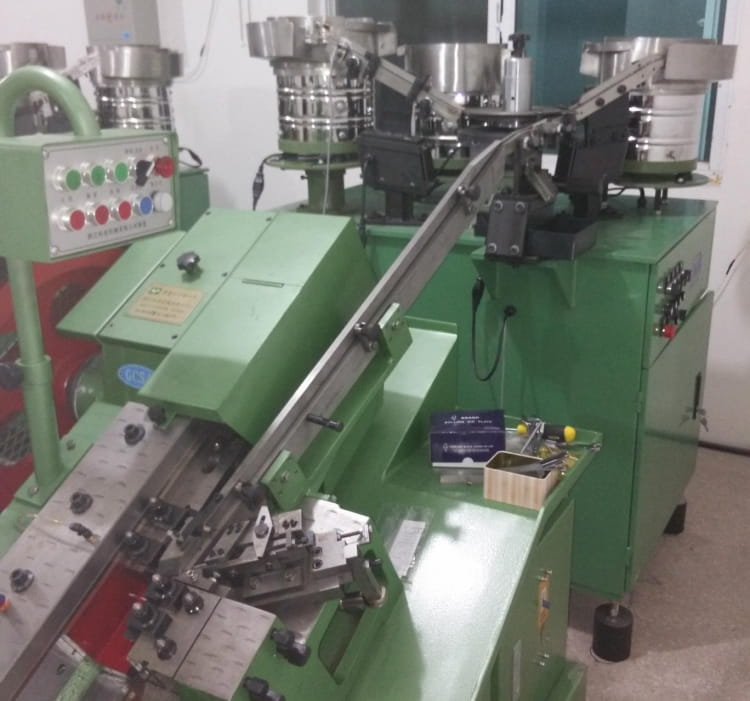

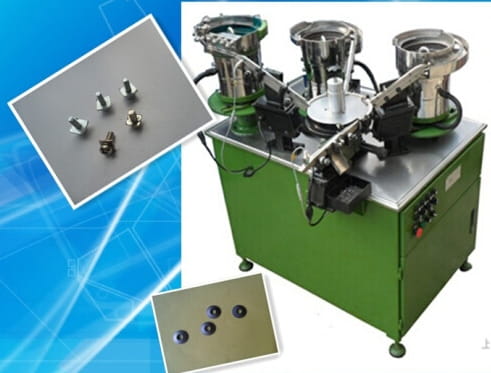

Screw washer automatic assembly machine for thread rolling machine structure
Standard accessories of Screw and washer automatic assembly machine for thread rolling machine
1. One set of standard hand tools.
2. One set of control Panel
3. Inside Lamp
